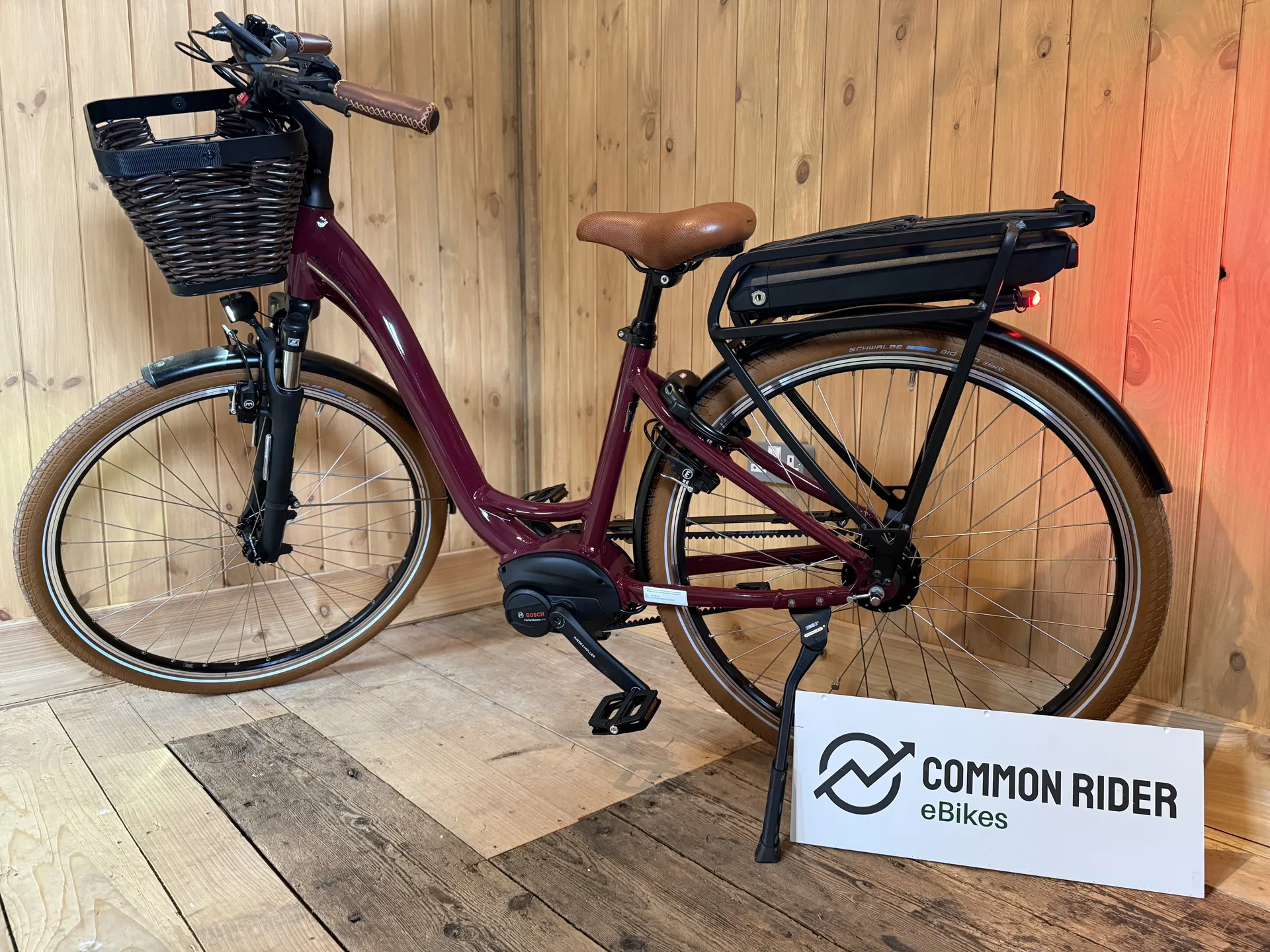

(The bike pictured is the actual model for sale) Riese and Müller Swing4 Silent in Bordeaux 46cm
(The bike pictured is the actual model for sale) Riese and Müller Swing4 Silent in Bordeaux 46cm
Riese & Muller

Swing4 Silent bordeaux 46cm

£1,999.00 £4,032.00 50% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Cancelations / Returns

If you wish to cancel an order, you may do so provided that you exercise your right no longer than 14 days after the day on which you receive the goods.

Your right to return or cancel products does not apply to goods that are custom-built, are ordered to your specification, or that have been clearly personalised. This doesn't affect your statutory rights if goods are faulty or not as described.

To exercise the right to cancel, you must make contact with Common Rider and notify us of your decision to cancel your contract by a clear statement, including details of your name, address, details of the order you wish to cancel, including also your preferred contact details (phone number and email address).

You can cancel by email: info@commonrider.co.uk or call +44(0)1962398711, or write to Common Rider Ltd, Lomer Farm Office, Warnford, Southampton SO32 3LJ

If you decide to cancel, you should return the goods to us at your cost within 14 days of such cancellation and we will reimburse to you (by the method used to pay for the original transaction) the amount in relation to goods to which cancellation rights apply.

Common Rider reserves the right to make a refund less any costs relating to loss in value as a result of damage, mishandling, or other devaluation though use of the goods. Refunds shall be made within 14 days of receipt of the returned goods, made using the same means of payment as used for the initial order transaction.
In-store Purchases
Contracts relating to all in-store (on-premises) purchases are final. Deposits are transferable into store credit, but are not refundable. Returns or cancellations can only be accepted for goods deemed not of satisfactory quality, or that they do not match a model seen or examined as defined by the Consumer Rights Act. All goods should be thoroughly inspected by the customer prior to leaving the premises. Any goods having left the premises are deemed as accepted by the customer.

Swing4 Silent bordeaux 46cm

Season:2024

Brand:Riese & Muller

Code:F01148_13060209200103

46 cm (28")

Rider Heights:
1.65 to 1.75 metres
5'5" to 5'9"

Rear hub: Shimano Nexus 8-speed, free-wheel, 36H
Battery: Bosch PowerPack Rack 500
Motor: Bosch Performance Line (smart system)
Display: Bosch Intuvia 100

Accessories: Front basket and carrier baskets

A traditional roadster e-bike that offers riders something extra: the Swing4 takes you as comfortably around down as out into the fields and forests. Its suspension fork and suspension seatpost ensure excellent riding comfort, while its powerful Bosch Performance Line motor packs a real punch with its 500 Wh carrier battery. And, thanks to the optional baskets for the carrier and handlebar, you’ll be stylishly equipped for whatever you need to carry.

The shape of the frame is reminiscent of a traditional roadster. And you’re guaranteed to reach your destination in comfort, thanks to its suspension fork and suspension seatpost. It powerfully assists you with a 500Wh carrier battery in conjunction with the seamlessly integrated Bosch Performance Line motor. The low step-through ensures comfortable handling in urban traffic, while the integrated cabling accentuates its elegant appearance.

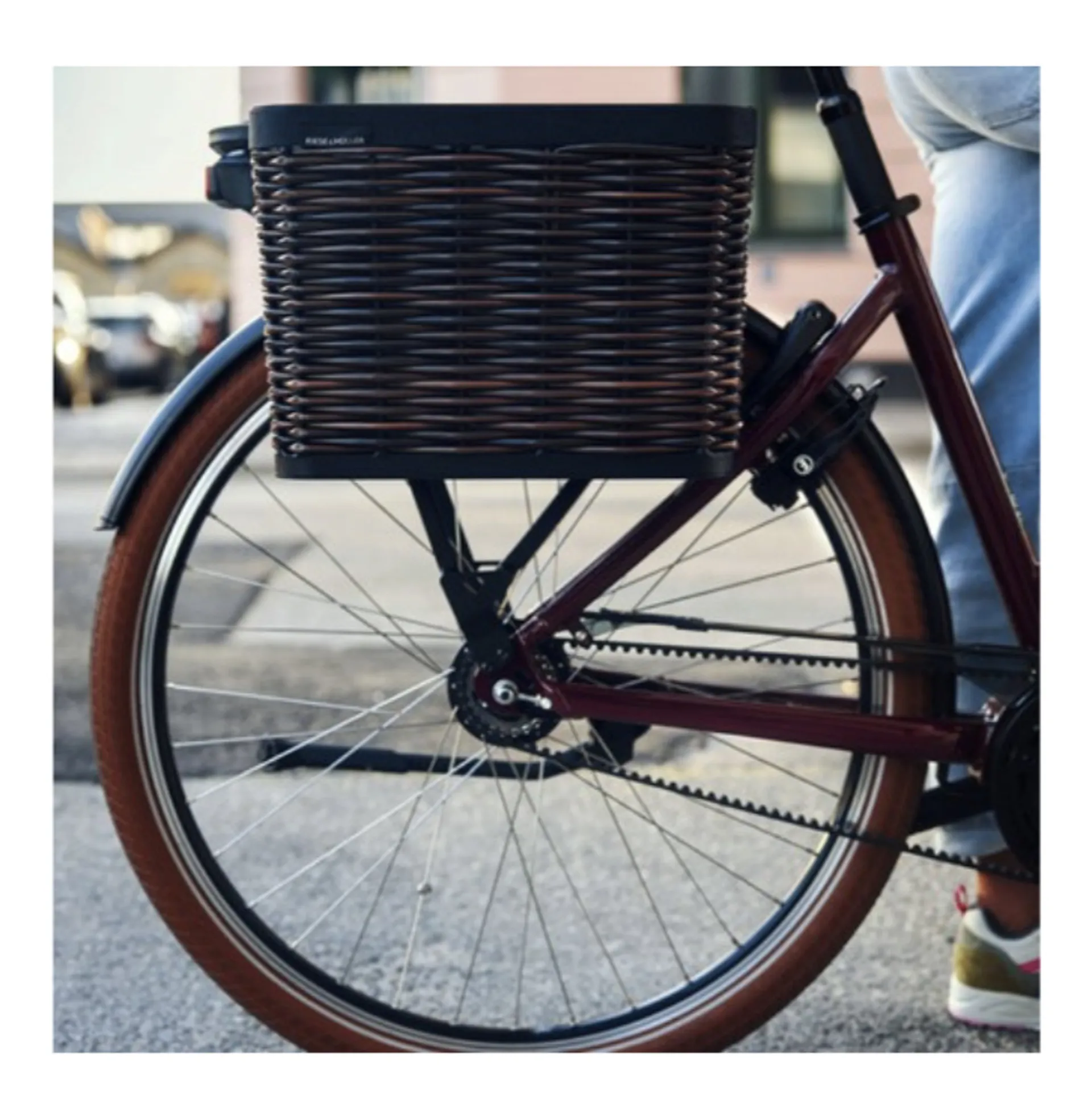

The perfectly fitting, optional baskets have been developed with a click system specifically for the Swing. Sturdy, weatherproof and with a sophisticated rattan look, they complete the image of a modern roadster. The front basket holding approximately 12litres can be loaded with up to 5kg. The carrier baskets can be fitted to the right, left or on both sides at the same time, like panniers. This leaves the carrier with MIK system free to be used for other things. Their large storage space of approx. 22litres was designed to carry shopping bags each weighing up to 7kg.

The carbon belt drive offers a wonderfully smooth ride, at the same time being low-maintenance and reliable. Dirt and oil stains, as was the case with chain drives, are now a thing of the past. The twist shift grip and Magura hydraulic rim brakes guarantee comfortable and safe everyday cycling. And the standard Abus frame lock is just as reliable.
Technical Information

The Swing4 silent in detail

Frame colour: bordeaux
Suspension fork: SR Suntour SF14, 28", 63mm, tapered; SR Suntour SF18, 26", 63mm, tapered*
Headset: Acros Integration X, block lock
Seatpost: Satori Elegance-LT OV 34,9 x 405mm; Satori Elegance-LT OV 34,9 x 355mm*
Seatclamp: Kalloy SC-201, 40,0 mm
Tires: Schwalbe Big Ben 50-622 Reflex; Schwalbe Big Ben 50-559 Reflex*
Tubes: Schwalbe AV19; Schwalbe AV13*
Rims: Mach1, 28", CNC; Mach1 260 26" CNC*
Spokes: Sapim Leader 2,0 mm, Inox ( 32x ); Sapim Leader 2,0 mm, inox ( 36x )
Front hub: Novatec 32H

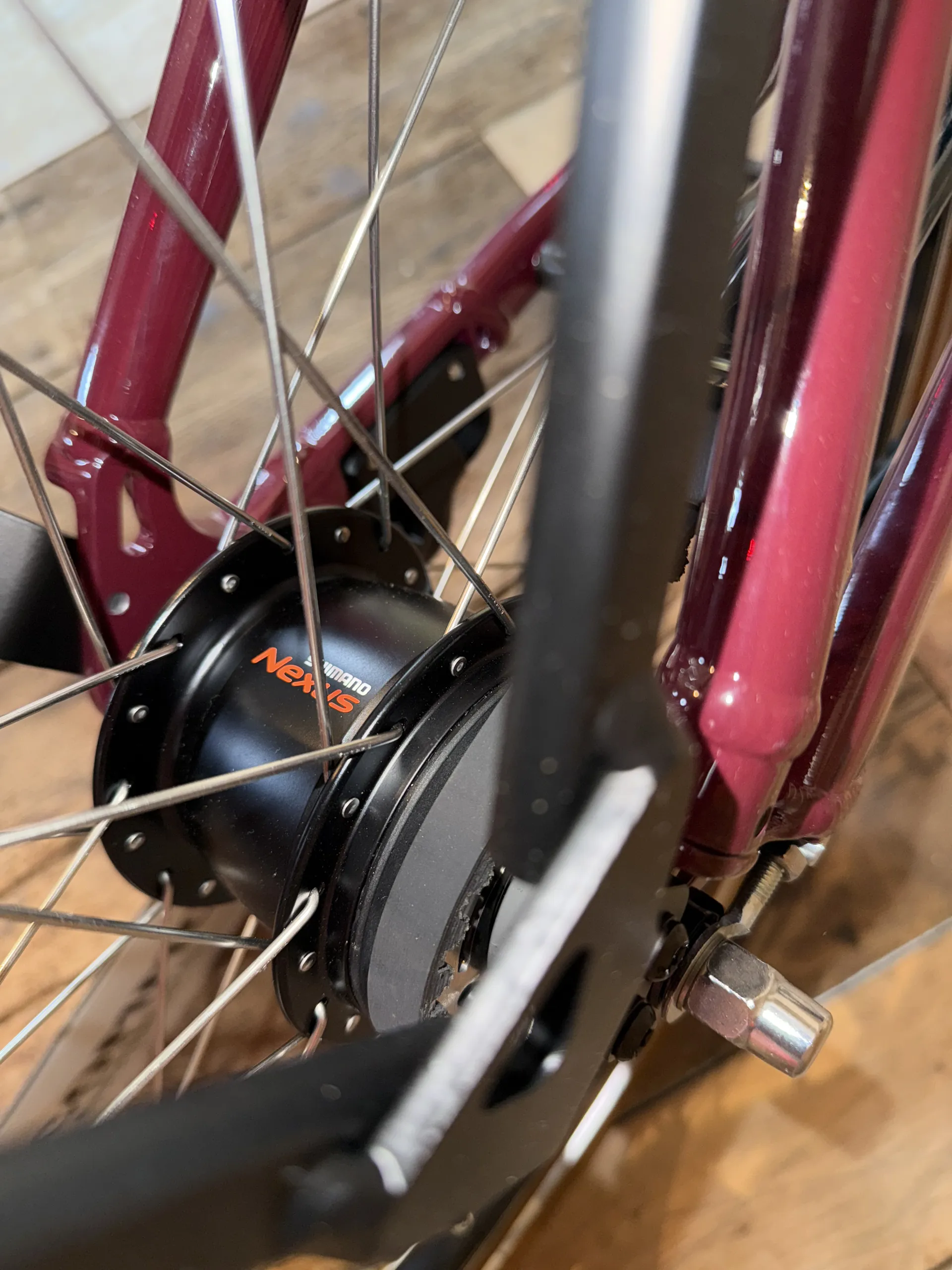

Rear hub: Shimano Nexus 8-speed, free-wheel, 36H
Battery: Bosch PowerPack Rack 500

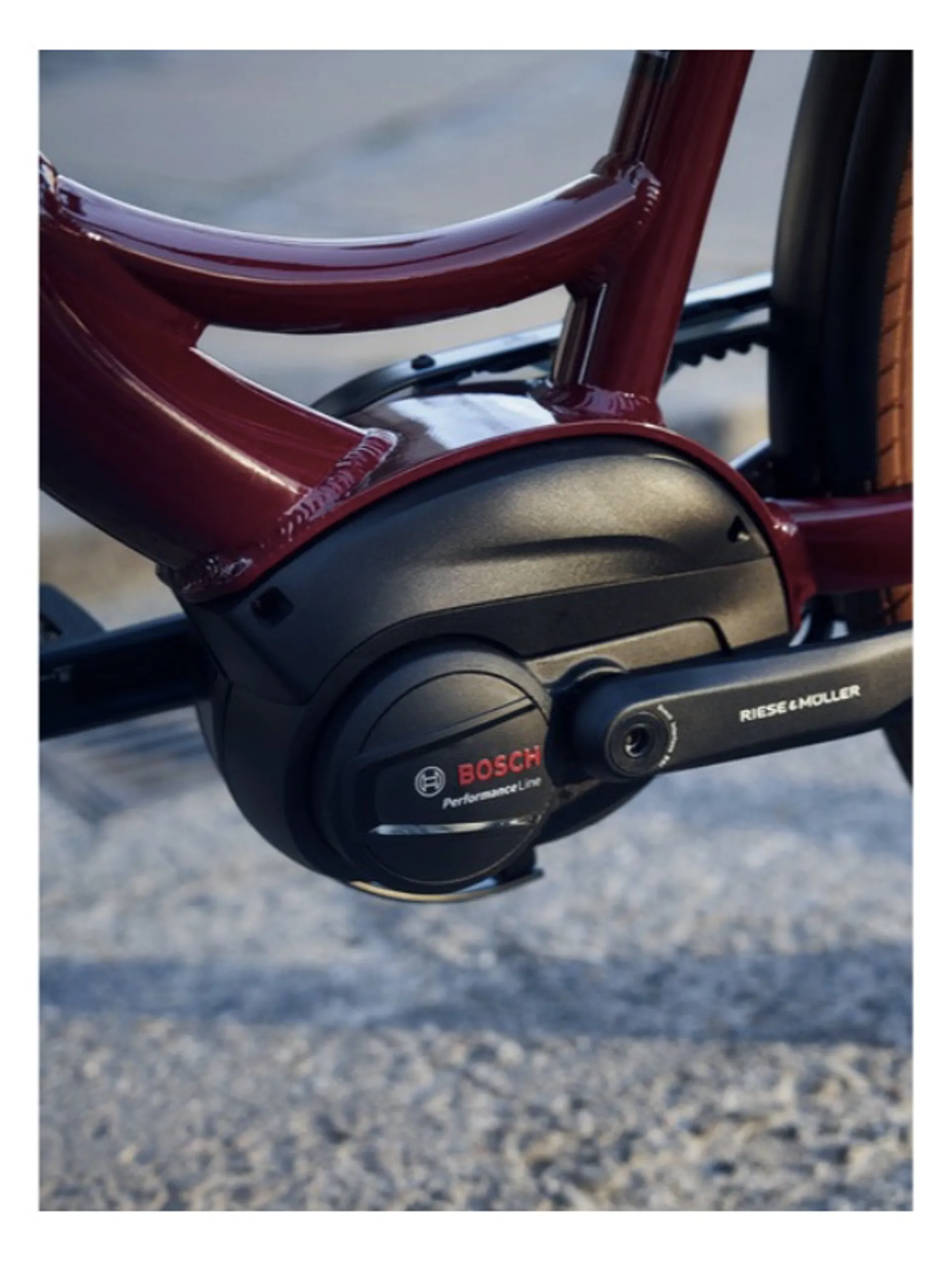

Motor: Bosch Performance Line (smart system)
Display: Bosch Intuvia 100
Crankset: FSA CK-601 170mm schwarz
Chain ring: 50T, for Gates drive belt CDX
Chain guard: Hebie Chainbar, black
Chain: Gates drive belt CDC; Gates drive belt CDX*
Pinion24T, for Gates drive belt CDX; 22T, for Gates drive belt CDX*
Saddle: Selle Bassano Volare XL
Pedals: VP R&M Custom
Shifter: Shimano Nexus grip shift, 8-speed
Handlebar: Satori Noirette Plus, 31,8 mm, Alu
Stem: Satori Stargazer-e, 110 mm, 35°; Satori Stargazer-e, 90 mm, 35°*; Satori Stargazer-e, 110 mm, 35°*
Grips: Velo Leather-Look
Brakes: Magura HS22, rim brake

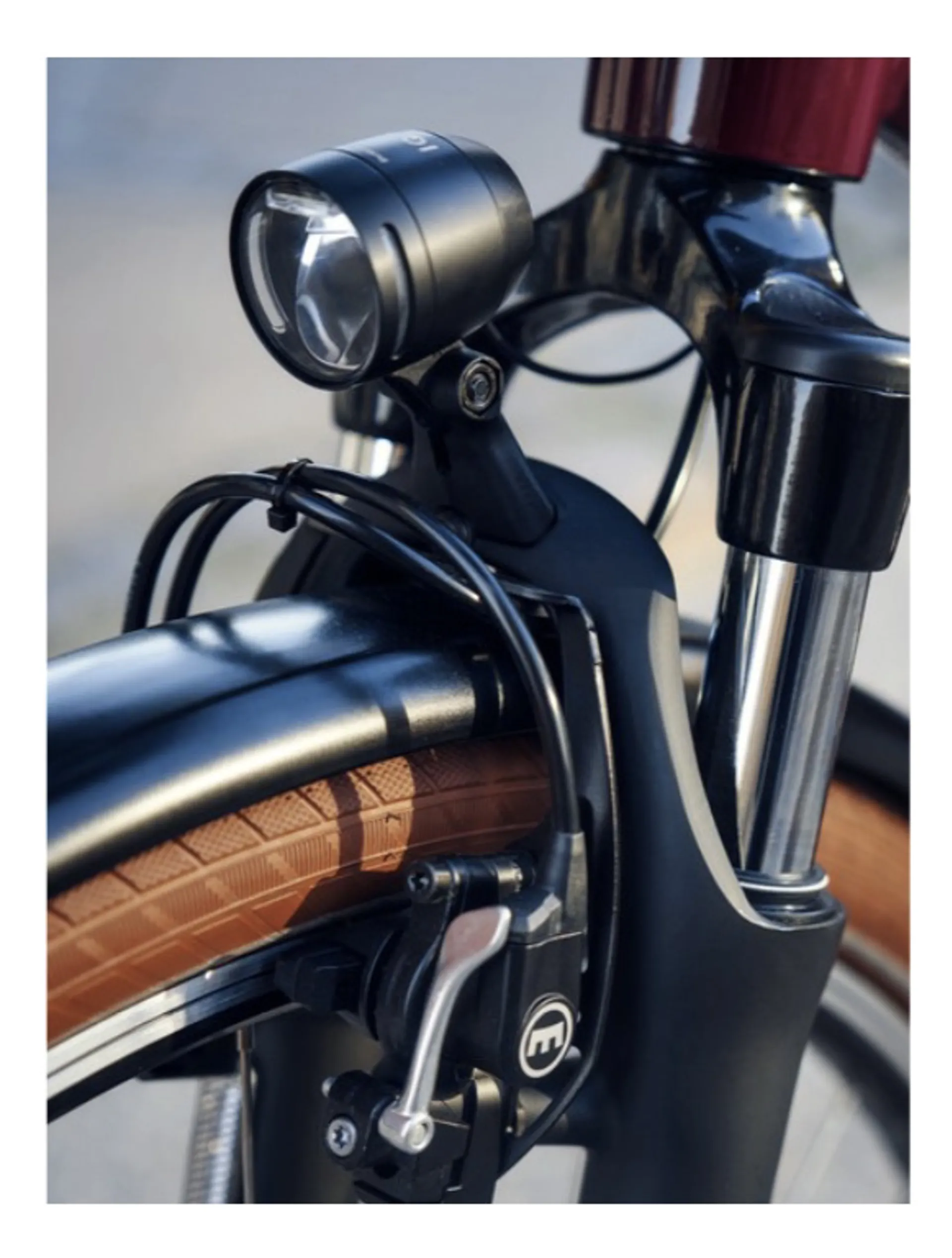

Front light: Busch & Müller Lumotec IQ-XS

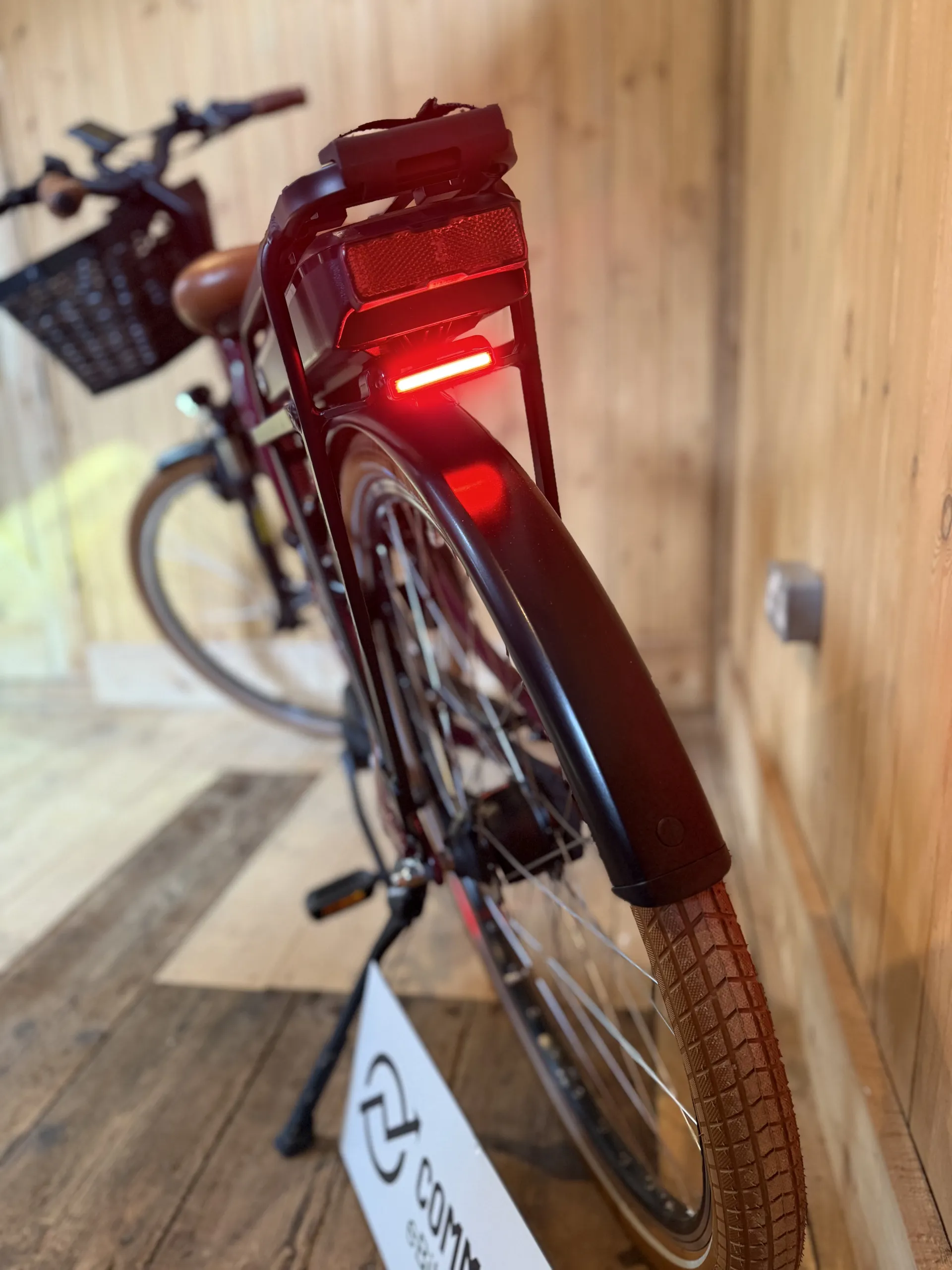

Tail light: Spanninga Pimento
Mudguards: Curana CD 65

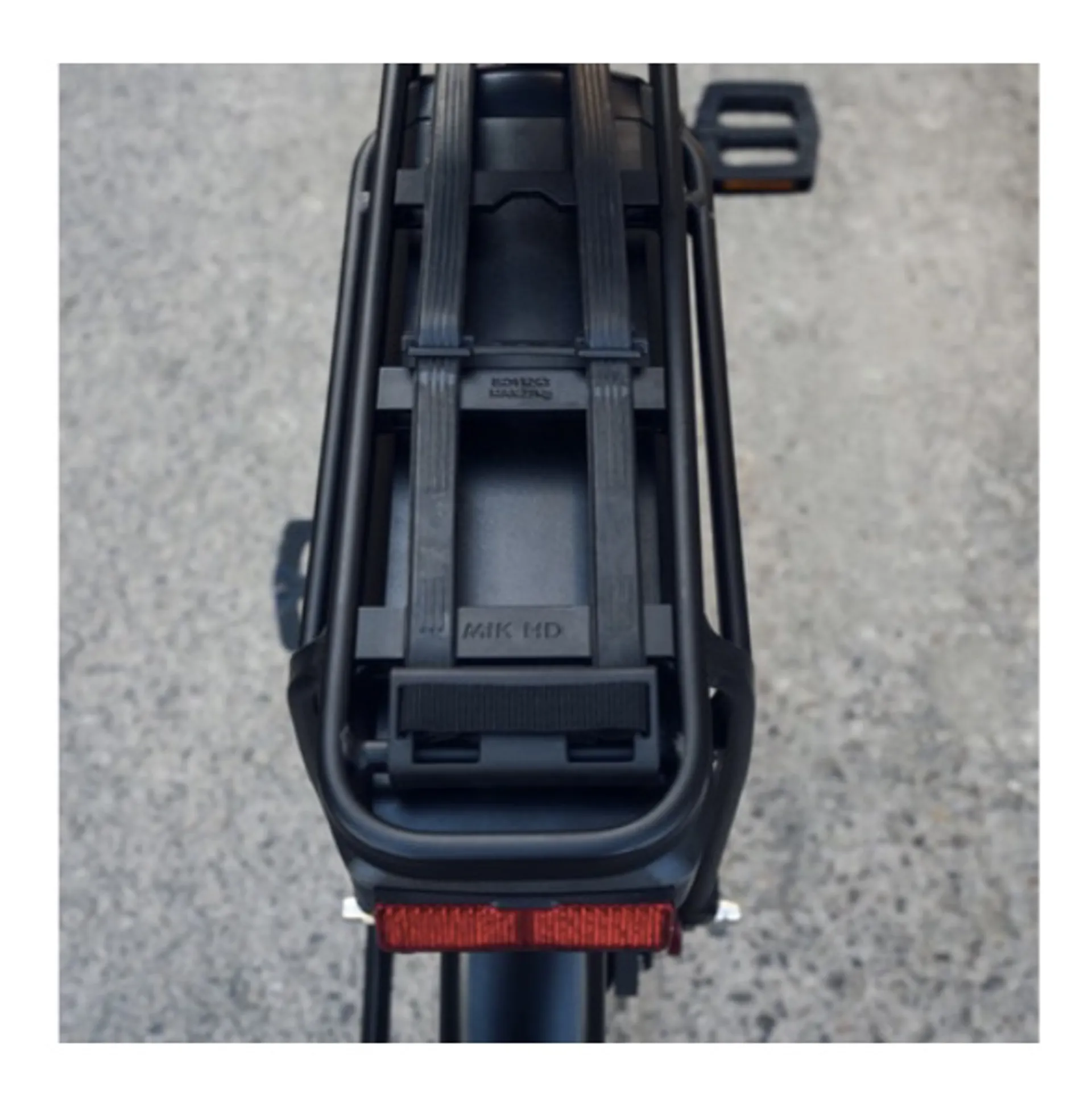

Luggage rack: Riese & Müller, MIK
Rubber: Bibia
Bell: Billy

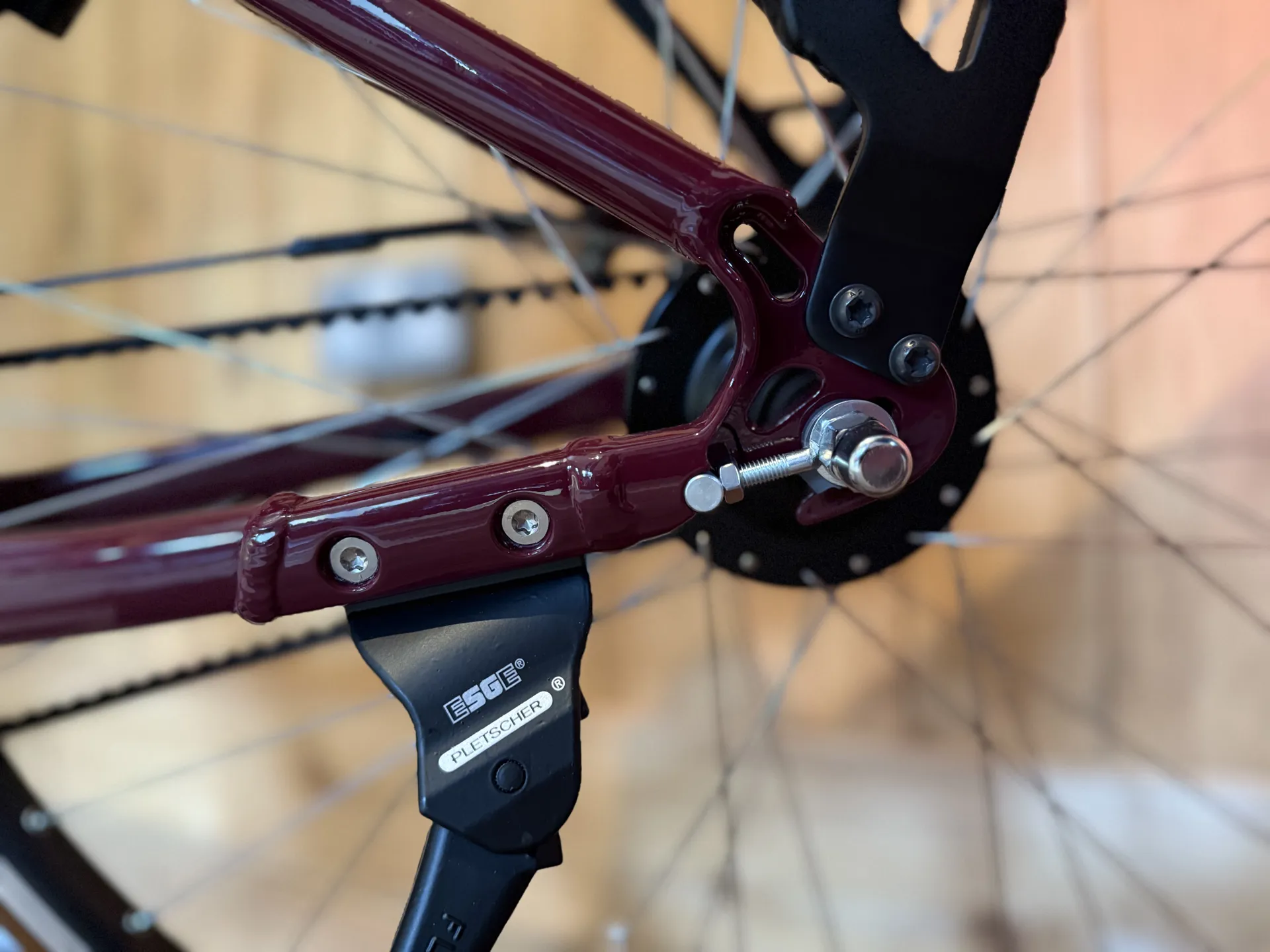

Kickstand: Pletscher Comp 40 Flex Evo
Lock: ABUS Shield X+
RX Hardware: RX Chip (für RX Services)*
Frame size: 46 cm (28")

* May differ depending on the availability in your country, design or configuration of the model.

Sizing Information
46 cm (28")

Rider Heights:
1.65 to 1.75 metres
5'5" to 5'9"
